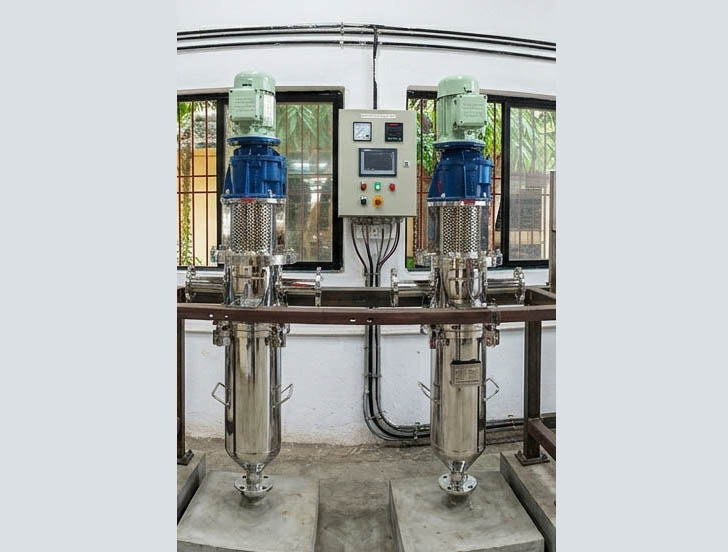

Turbo Edge Filter (TRB)

Turbo Edge Filter (TRB)
Turbo Edge Filter (TRB)

(For cost effective & hygienic filtration of pastes & viscous slurries)

WHY CHOOSE THIS FILTER?

  • Easy and continuous cleaning by a 'filter element-scraper' assembly.
  • Welded wedge wire filter elements.
  • Out-to-in flow.
  • No consumables and disposables.
  • Automatic purging based on preset dp/timer.
Enquire Now

Product Specification & Applications

KEY ADVANTAGES

  • Low power consumption.
  • Unattended continuous operation.
  • Complete process & operator safety.
  • Safe & hygienic operation.
  • Least space & maintenance requirement.
  • Suitable for viscous fluids and high solids loading.

TYPICAL APPLICATIONS

  • Lecithin filtration, Coating liquid filtration, Starch slurry filtration.
  • Process water treatment.
  • Polymer filtration.
  • Paints, gums & glues, greases, lubricants.
  • Jelly, jam, honey, food paste, thick flavors, sauces.
  • Shampoo, tooth paste, dental cream, shaving cream.

OPTIONS AVAILABLE

  • Jacketed Turbo Edge Filters
  • Trolley mounted Turbo Edge Filters
  • Fully automated Turbo Edge Filters
  • Manually operated units

Technical Specifications & Parameters

FILTER HOUSING All grades of Stainless steel, Hastelloy, Carbon Steel, MSRL, PTFE Coated etc.
FILTER ELEMENT All grades of stainless steel, URANUS, MONEL etc.
SIZES 100 Kgs/hr to 60000 Kgs/hr feed in single unit
SERVICE RANGE Upto 40Kg/cm2g Upto 220°C 50 microns
