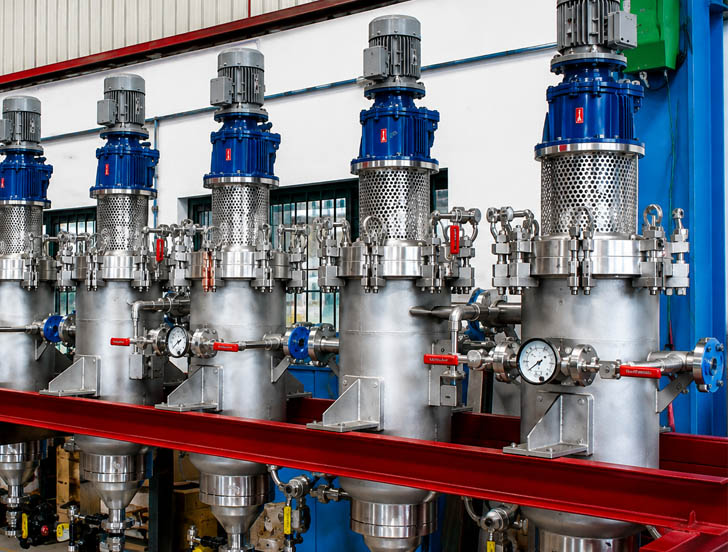

Self Cleaning Filter (SCF)

Self Cleaning Filter (SCF)
Self Cleaning Filter (SCF)

(Automatic self-cleaning system to ensure continuous & unattended eco-friendly filtration.)

WHY CHOOSE THIS FILTER?

  • Easy and continuous cleaning by a 'rotary-brush' assembly.
  • Slip-on mounting of cleaning brushes.
  • Welded wedge wire filter elements.
  • Completely closed system.
  • In-to-out flow.
  • PLC controlled with Auto/Manual modes.
  • Automatic purging based on preset dp/timer.
Enquire Now

Product Specification & Applications

KEY ADVANTAGES

  • Low power consumption.
  • Unattended continuous operation.
  • Complete process & operator safety.
  • Safe & hygienic operation.
  • Least space & maintenance requirement.
  • Zero emission to environment.
  • Large area for filtration, low pressure drop.

TYPICAL APPLICATIONS

  • Effluent water, waste water, intake water, cooling water, side streams.
  • Pulp / paper.
  • Steel plants.
  • Sugar industries, mixed juice filtration.

OPTIONS AVAILABLE

    Customised SCF available as

  • Automatic Miscella Filter
  • Automatic Check Filter (for sugar syrup)
  • Automatic Mixed Juice Filter
  • Jacketed Self Cleaning Filters
  • Self Cleaning Filters with Flame Froof Drives
  • Skid Mounted Self Cleaning Filters

Technical Specifications & Parameters

FILTER HOUSING All grades of Stainless steel, Carbon Steel, MSRL, PTFE Coated, Hastelloy etc.
SCREEN CYLINDER All grades of Stainless Steel, URANUS, Monel, SUPERDUPLEX, etc.
ROTATING BRUSHES Nylon, S.S., PTFE, etc.
SIZES 1.0 M3/Hr to 3000.0 M3/Hr in single unit
SERVICE RANGE Upto 30 Kg/cm2g Upto 220°C 25 microns and above
