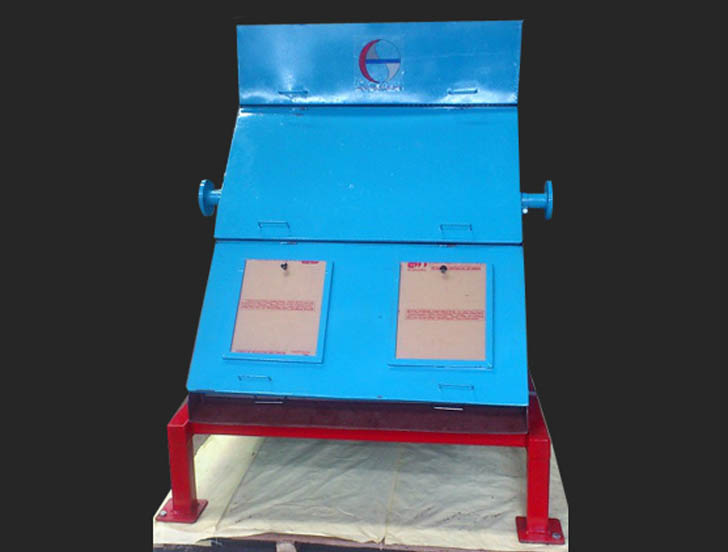

DSM Screen (DSM)

DSM Screen (DSM)
DSM Screen (DSM)

(Static sieve bend screen for gravity separation of solids at high throughputs)

WHY CHOOSE THIS FILTER?

  • No moving parts, static equipment.
  • Welded wedge wire curved screen.
  • Spray cleaning facility.
  • Top over flow.
  • Screw conveyor (optional) at the bottom of solid collection hopper.
  • High pressure jet spray feeding for positive separation.
Enquire Now

Product Specification & Applications

KEY ADVANTAGES

  • Simple installation.
  • Zero energy consumption.
  • Unattended continuous operation.
  • Complete process & operator safety.
  • Safe & hygienic operation.
  • Large area for filtration, low pressure drop.

TYPICAL APPLICATIONS

  • Effluent treatment plants.
  • Sugar cane, mixed juice, raw juice, starch water, extract solutions in gelatine plants.
  • Coal washeries & mines.
  • Fish, abattoirs & meat processing, tanneries.
  • Industrial laundry.
  • White / black liquors in pulp & paper mills etc..

Technical Specifications & Parameters

HOUSING
All grades of Stainless steel & Carbon Steel
SCREEN
All grades of Stainless steel
SCREEN TYPE
Welded wire of 'TILTED WIRE' construction
SIZES
Custom Designed
CLARITY
50 Microns and above

Dutch State Mines Screen ( DSM ) Manufacturer / Supplier / Design
