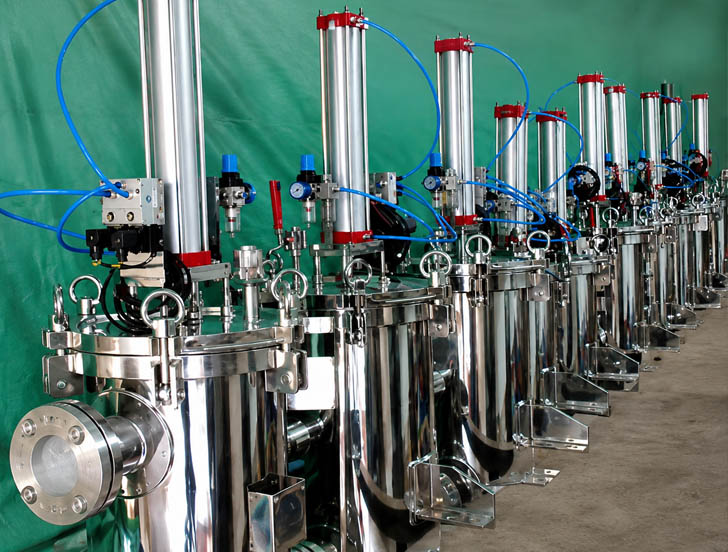

Self Cleaning Filter - Pneumatically Operated

Self Cleaning Filter - Pneumatically Operated
Self Cleaning Filter - Pneumatically Operated

(For continuous unattended filtration of high viscous and high solids process streams.)

WHY CHOOSE THIS FILTER?

  • Double pneumatic cylinders with S.S piston rod.
  • Pneumatically operated wiper ring for cleaning of filtering surface.
  • Specially designed welded wedge wire filter elements.
  • No consumables and disposables.
  • Completely closed system.
  • PLC controlled with Auto/Manual modes.
  • Automatic purging based on preset dp/timer.
Enquire Now

Product Specification & Applications

KEY ADVANTAGES

  • Low power consumption.
  • Unattended continuous operation.
  • Complete process & operator safety.
  • Safe & hygienic operation.
  • Least space & maintenance requirement.
  • Zero emission to environment.
  • Large area for filtration, low pressure drop.

TYPICAL APPLICATIONS

  • Varnishes, adhesives, resins.
  • Effluent water, waste water.
  • Paints, pigments, colourants & ink.
  • Emulsions.

OPTIONS AVAILABLE

  • Skid mounted units complete with pump, piping etc.
  • Units with pneumatic controller available, no direct electric power required.

Technical Specifications & Parameters

HOUSING
All grades of Stainless steel, Carbon Steel, PTFE Coated , Hastelloy etc.
FILTER ELEMENT
All grades of Stainless steel, URANUS, Monel, SUPERDUPLEX
WIPER
PTFE, UHMW, NYLON
SIZES
1.0 M3/Hr to 200.0 M3/Hr in single unit
SERVICE RANGE
Upto 30 Kg/cm2g Upto 100°C 25 microns and above
