Candle Filter (CND)

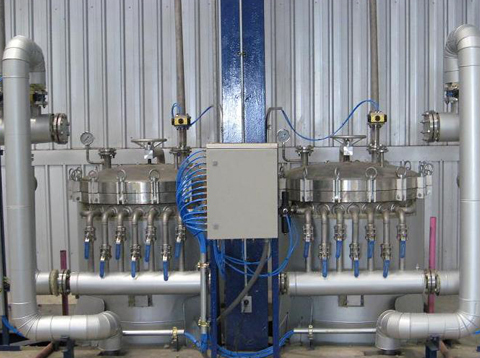

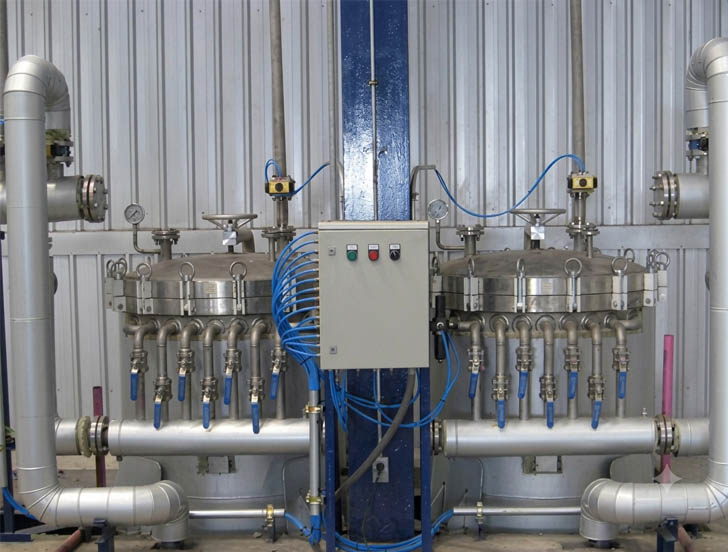

Candle Filter System (CND)
Candle Filter (CND)

(For complete recovery of catalysts & removal of carbon)

WHY CHOOSE THIS FILTER?

  • Permanent candles with replaceable filter medium
  • No moving parts
  • Completely closed system
  • Unique STAGGERED SLOTTED candles for efficient squeezing/cake drying
  • Bottom-to-top flow for uniform cake formation
  • Backwashable without opening the filter
Enquire Now

Product Specification & Applications

KEY ADVANTAGES

  • Complete operator & process safety
  • Safe and hygienic operation
  • Quick turnaround time
  • Flexible filtration rating in the same equipment
  • Higher cake holding capacity
  • Zero emission to environment
  • Least pressure drop, longer run time

TYPICAL APPLICATIONS

  • Recovery of noble catalysts like Nickel, Platinum, Palladium etc, activated carbon, charcoal in pharma plants.
  • Bleaching earth removal in vegetable oil plants.
  • Resin filtration.
  • All types of polishing applications.
  • For precoat filtration system and complete catalyst recovery.
  • Filtration of hazardous liquids and many more.

OPTIONS AVAILABLE

  • Jacketed Candle Filters
  • Skid mounted Candle Filters
  • Fully automated Candle Filtration system
  • Zero heel volume Candle Filters

Technical Specifications & Parameters

FILTER HOUSING All grades of Stainless steel, Hastelloy, Carbon Steel, MSRL, PTFE Coated etc.
CANDLES All grades of Stainless steel, Hastelloy, Carbon steel, Polypropylene, PVC, CPVC etc.
MEDIUM Stainless steel, PP, Nylon, Polyester, Cotton, Teflon coated, Antistatic types etc.
SIZES 0.1 Sq.m to 60 Sq.m in single unit
SERVICE RANGE Upto 30 Kg/cm2g Upto 250°C Less than one micron
